防尘电缆桥架新思路

防尘电缆桥架新思路

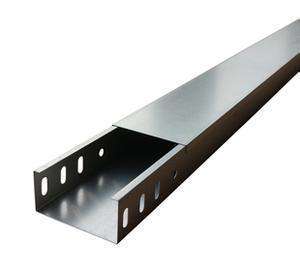

电缆桥架是用来固定电缆的装置，电缆桥架上大都设有散热孔，用来散发电缆工作中产生的热量，保证电缆工作的安全性能，但在灰尘较多的环境下，灰尘容易从散热孔进入到桥架内部，污染电缆；现有的桥架大都体积固定，不能按照电缆的根数调节体积，不能有效的利用安装空间，一种可以防灰并且体积大小可调的电缆桥架还有待于进一步研究和开发。
本实用新型的技术方案是：本实用新型的一种插接式防尘电缆桥架，包括左插接槽、右插接槽、温度感应器、报警装置、左固定螺栓、右插接螺孔、左插接螺孔、右固定螺栓、透气孔和防灰罩，所述左插接槽的顶部设有所述温度感应器和所述报警装置，所述温度感应器和所述报警装置通过电连接，所述左插接槽的顶部设有所述左固定螺栓，所述右插接槽的顶部设有若干所述右插接螺孔，所述左固定螺栓和所述右插接螺孔通过螺纹活动连接，所述左插接槽的底部设有若干所述左插接螺孔，所述右插接槽的底部设有所述右固定螺栓，所述左插接螺孔和所述右固定螺栓通过螺纹活动连接，所述左插接槽和所述右插接槽的侧面上均匀分布有所述透气孔，所述透气孔上设有所述防灰罩。
A new idea of dust - proof cable bridge

Cable tray is used for fixed cable device, cable bridge frame is equipped with ventilation holes, mostly used to send out the heat generated by the cable work, ensure the security of cable work performance, but in a dusty environment, dust easily from inside the cooling hole into the bridge, pollution of the cable; Existing bridge are mostly fixed volume, not according to the number of the cable to adjust volume, cannot effectively use the installation space, a kind of can prevent dust and adjustable size of cable tray has yet to be further research and development.

The technical scheme of the utility model is: The utility model of a dustproof plug type cable tray, plug slot in the left and right plug slot, temperature sensors, alarm device, left the retaining bolt holes, left, right plug plug screw hole, right, fixed bolts, air holes and dust shields, described in the left top of the plug slot has described described temperature sensors and alarm device, described the temperature sensor and alarm device described by electrical connection, as described in the left top of the plug slot has described left the retaining bolt, described in the right top of the plug slot has described several right plug screw hole, described left fixed bolts and described in the right plug screw hole by screw thread connection, Described left at the bottom of the plug slot has described several plug screw hole on the left, right at the bottom of the plug slot has described described right retaining bolt, described in the left plug screw holes and described right fixed bolt by screw thread connection, described in the left plug slot and described in the right plug slot on the side of the uniform distribution has air holes, described in the grey shields has stated on the air holes.
