电缆桥架已经广泛的用于人类的生活中,伴随这人们日益增长的物质需求,通过一个地方至另一个地方数据传输等均是采用电缆完成的,在人们生活中,特别是类似大型商场或者高档写字楼内,裸露在外的电缆通常会给人们带来视觉疲劳,影响整体的美观,同时凌乱的分布还会造成维修不便等诸多问题,电缆桥架的产生,完全克服了这些问题,得到广泛的应用,电缆及电缆桥架一般都会在装修时放在屋面吊顶的上方,然后在合适的地方设置查验孔,由于在吊顶的上方都会伴随有大量的鼠患影响,因此必须使用封闭的电缆桥架才能避免,但是众所周知,由于电缆在正常的使用中,会产生大量的余热,如果不及时散热,很容易产生火灾隐患,造成不可估量的后果。
本实用新型所要解决的技术问题在于提供一种结构简单,使用方便,安全性能高的防鼠透气的电缆桥架。
一种防鼠透气的电缆桥架,主体由上盖板和下盖板组成,其特征在于:所述的下盖板上两侧设置侧板,所述的侧板内部及下盖板的上部设置有一敞口的金属内槽,所述的金属内槽与侧板及下盖板之间预留有缝隙且缝隙中设置有定位板,所述的金属内槽的侧壁顶部与侧板的顶部位于同一高度,且上端铆接有一可拆卸的卡槽板,所述的上盖板的两侧设置有卡条,所述的上盖板可通过卡槽板与卡条推拉拆卸。

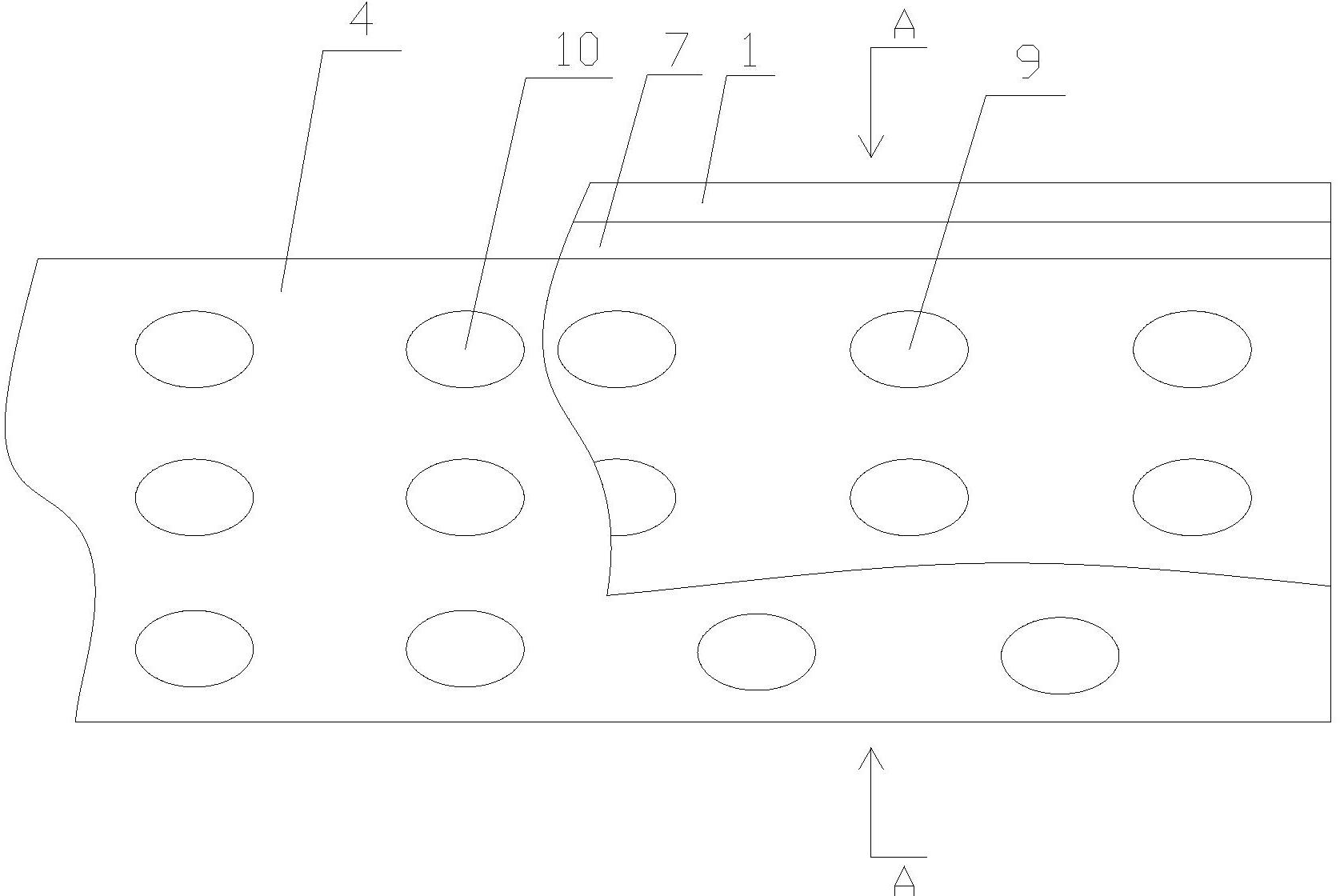

为了使本实用新型实现的技术手段、创作特征、达成目的与功效易于明白了解,下面结合具体图示,进一步阐述本实用新型。如图 1、图 2 所示,一种防鼠透气的电缆桥架,主体由上盖板 1 和下盖板 2 组成,下盖板上 2 两侧设置侧板 3,侧板 3 内部及下盖板 2 的上部设置有一敞口的金属内槽 4,金属内槽 4 与侧板 3 及下盖板 2 之间预留有缝隙 5 且缝隙 5 中设置有定位板 6,金属内槽 4 的侧壁顶部与侧板3的顶部位于同一高度,且上端铆接有一可拆卸的卡槽板 7,上盖板 1 的两侧设置有卡条 8,上盖板 1 可通过卡槽板 7 与卡条 8 推拉拆卸,这样设置后,通过两层槽设计,不仅保证了桥架的结构更加稳定,侧板 3 上设置有透气孔 9,金属内槽 4 侧壁设置有散热孔10,散热孔 10 与透气孔 9 呈交错设置,方便了散热透气,缝隙 5 预留的距离为 1-3cm,缝隙 5预留小,避免老鼠进入,安全性更强,金属内槽 4 侧壁的外侧设置有密集的散热片 11,散热更加合理有效,金属内槽采用铝合金制作,质地轻,散热性更好。以上显示和描述了本实用新型的基本原理和主要特征和本实用新型的优点。本行业的技术人员应该了解,本实用新型不受上述实施例的限制,上述实施例和说明书中描述的只是说明本实用新型的原理,在不脱离本实用新型精神和范围的前提下,本实用新型还会有各种变化和改进,这些变化和改进都落入要求保护的本实用新型范围内。本实用新型要求保护范围由所附的权利要求书及其等效物界定。
Cable bridge has been widely used in human life, along with the people's growing material needs, from one place to another place for data transmission and so on all is done by cable, in people's life, especially like shopping malls or high-grade office buildings, bare cable often bring people visual fatigue, affect the whole beautiful, messy distribution also can repair inconvenience caused many problems, such as the production of cable tray, completely overcome these problems, has been widely used, cable and cable tray generally when decorate on the roof above the ceiling, and then in the right place to set the inspection hole, Due to the above the ceiling will be accompanied by a large number of rat, so must use closed cable tray to avoid, but it is well known that due to the cable in the course of normal use, will produce large amounts of waste heat, if not timely heat dissipation, it is easy to produce fire hazards, have incalculable consequences.
The technical problem to be solved by the utility model is to provide a simple structure, convenient to use and high safety performance rat - proof cable bridge.
A rat breathable cable bridge, the main body is composed of on the cover plate and the lower cover plate, whose character is: under the cover plate on the two sides stated side panel, side panel as described under the internal and cover the upper part of the set one open inside the metal tank, described inside the metal tank between side plate and bottom plate and obligate has cracks and crevices positioning plate is set up, the sidewalls of the mentioned inside the metal tank top and side plate is located in the top of the same height, and the upper riveting has a removable card slot board, described on both sides of the plate setting there are CARDS, mentioned on the cover plate by card slot plate and a push-pull disassembly.
In order to make it easy to understand the technical means, creation features, purpose and efficacy of the utility model, the utility model is further elaborated in the following combination with the specific drawings. As shown in figure 1, figure 2, a rat breathable cable bridge, the main body is composed of cover plate and the lower cover plate 1 2, the two sides set up under the cover board 3, lateral plate 3 internal and set the upper cover plate 2 under a open inside the metal tank 4, inside the metal tank under 3 of 4 and side shell, and the cover plate between two reserved a gap 5 and aperture setting a positioning plate (6), inside the metal tank top of the wall at the top and side plate 3 4 at the same height, and the upper riveting has a removable card slot board 7, on both sides of the cover plate 1 set have card of article 8, On cover plate 1 article by card slot plate 7 and 8 push-pull disassembly, after this setting, through the two layers of groove design, not only to ensure the bridge structure more stable, lateral plate 3 set have air holes on 9, 4 side wall inside the metal tank set cooling hole 10, heat dissipation holes and air holes 9 show interlaced set 10, convenient for cooling air, the distance of the gap 5 reserved for 1-3 cm, small gap 5 reserved, avoid entering, security, stronger inside the metal tank 4 side wall of the lateral set has 11 intensive heat sink, heat dissipation is more reasonable and effective, The metal inner groove is made of aluminum alloy, with light texture and better heat dissipation. The above shows and describes the basic principle, main features and advantages of the utility model. Industry technical personnel should be aware of the utility model is not restricted by the above example, the implementation of the case and manual only describes the principle of this utility model, not from the spirit and scope of this practical new type under the premise of the utility model will also have a variety of changes and improvements, these changes and improvements to request protection range of the utility model. The scope of protection required by the utility model is defined by the attached claim and its equivalent.
