电缆桥架在石油、化工、电力、轻工、电讯等行业应用非常广泛，主要起到对电线、电缆成品的保护作用。现有的各种电缆桥架多是经剪料、冲孔、折弯后成型，断面简单、结构呆板、加工速度慢。而且由于桥架跨度较大，承载的电缆及桥架自身重量也较大，为了保证承载能力且尽量减少桥架变形，压制桥架材料也相应变厚，这样使得材料成本增加，不便于托盘式桥架的安装运输且存在强度低、成本较高、散热效果差的缺点。

如上所述，如何有效设计电缆桥架，使桥架能保证足够刚度及承载力、控制材料成本并有较好的防止电线电缆在转弯处受到磨损，利用高承载电缆桥架来解决上述问题，是非常有必要的。

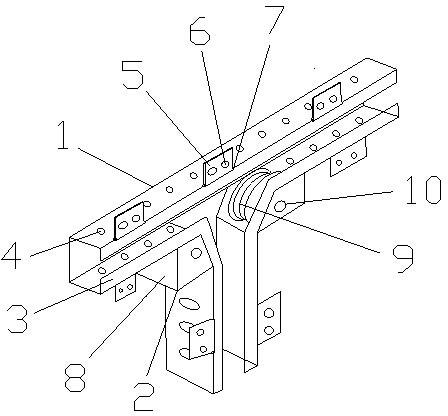

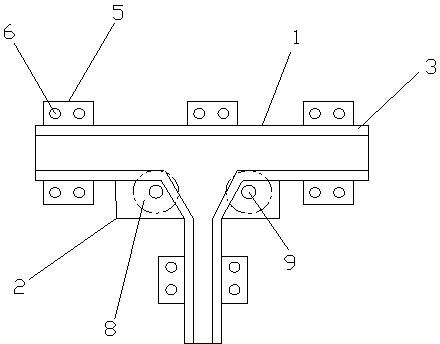

一种高承载电缆桥架，包括支架和压轮装置，所述压轮装置位于支架的转角处，所述压轮装置设置有一个以上，所述支架包括挡片和固定件，所述挡片位于支架的两边开口处、并与支架相固定，通过挡片将支架内部的电线电缆阻挡起来，挡住脱离支架，所述固定件设置有一个以上，所述固定件上包括螺纹孔和铰轴，所述固定件上设置有两个螺纹孔，所述铰轴连接固定件和支架，通过固定件将支架固定在墙壁上，同时由于铰轴，能够使固定件根据不同的墙壁面进行调节固定方式，使支架与墙壁相固定，所述压轮装置包括有压轮箱，所述压轮箱内设置有压轮和转轴，所述转轴贯穿压轮并与压轮箱相固定，通过压轮能够使电线电缆在支架内移动更加方便，同时有也避免电线电缆与支架内转角处处于摩擦状态， 避免电线电缆受到磨损。
Cable bridge is widely used in petroleum, chemical industry, electric power, light industry, telecommunication and other industries. The existing cable Bridges are mostly shaped by cutting materials, punching holes and bending, with simple section, rigid structure and slow processing speed. And due to large span bridge, carrying the cable and bridge its weight is bigger also, in order to guarantee the bearing capacity and minimize the bridge deformation, suppress bridge materials also becomes thicker accordingly, which makes the cost of materials increased, is not convenient to pallet bridge transportation and installation of low intensity, the shortcomings of high cost and poor heat dissipation effect.
As mentioned above, how to effectively design cable bridge, the bridge to ensure enough rigidity and bearing capacity, control the cost of materials and has better to prevent the wear of wire and cable in the corner, high load of cable tray is used to solve the above problem, it is necessary.
A high load of cable tray, including stent and roller device, roller device located in the corner bracket, described described pressure wheel set up more than one, stents, including block slice and fixed parts, described block slice in brackets on both sides of openings, and with the fixed bracket, by wire and cable inside block slice will support block, block from the scaffold, described a set more than one fixed, fixed pieces including threaded holes and hinged, fixed on a stated set have two threaded hole, hinged connection parts and fixed bracket, described by fixing parts to fix bracket on the wall, with hinged at the same time, Can make fixed a adjusted according to different wall surface of the fixed way that makes fixed bracket and wall, described pressure wheel device including a round box, described pressure wheel pressure wheel and rotating shaft is set in the oven, described a shaft through the roller and roller box, fixed by roller can make wire and cable in stent move more convenient, at the same time there are also avoid wire and cable and stent corner in the friction state, avoid wire and cable by wear and tear.
