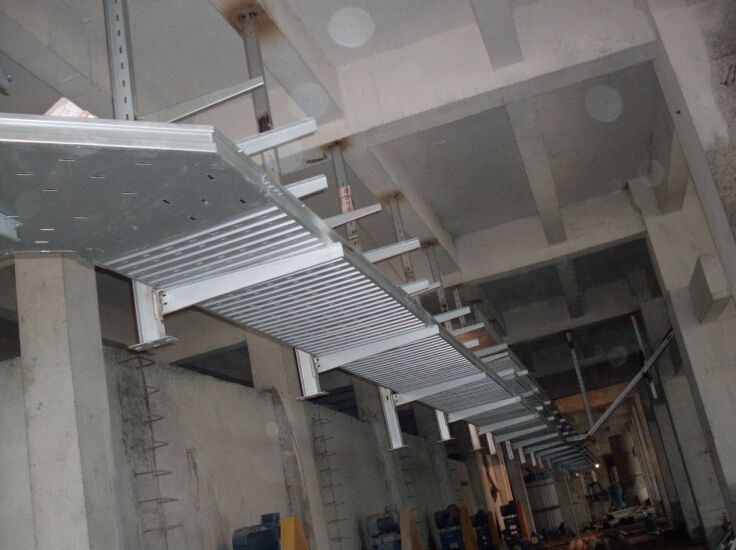

电缆桥架安装
电缆桥架安装主要步骤为: 立柱安装、托臂安装、桥架安装和接地线安装等。
一、电缆桥架安装的施工准备
1) 按照已批准的电缆桥架施工组织设计( 施工方案) 进行技术交底。

2) 按电缆桥架施工图测量放线、坐标和标高、走向，经复核符合设计要求。

3) 电缆桥架的实际需要量，根据工程情况进行统计，现场验收电缆桥架及其附件齐全，规格数量应符合设计要求。

4) 电缆桥架的安装宜在管道及空调工程基本施工完毕后进行。

5) 土建工程应全部结束且预留孔洞、预埋件符合设计要求，预埋件安装牢固、强度合格。
二、电缆桥架拼装

1) 托臂安装完工后，按电缆桥架施工图纸要求进行桥架拼装。拼装时须注意各层桥架型号，不得装错。

2) 用于组合桥架延续连接及附件连接的紧固螺栓均应注意螺栓安装方向，螺栓头应在桥架内侧( 安装电缆部位) ，螺母在外侧，螺栓长度
应适中。

3) 电缆桥架桥架在转弯或进行交叉、丁字连接时，应根据实际情况采用桥架标准弯头，注意宜先安装标准弯头，尤其是三通及四通标准弯头，而后从
弯头处开始，安装引向各方位的直线桥架，以免衔接不良。


                                                                                                              云南惠博电缆桥架厂

电缆桥架安装主要步骤为: 立柱安装、托臂安装、桥架安装和接地线安装等。

Cable tray installation method mainly comprises the following steps: post installation, the installation, installation and installation of grounding wire bridge.

一、电缆桥架安装的施工准备

1. Construction preparation for installation of cable bridge

1) 按照已批准的电缆桥架施工组织设计( 施工方案) 进行技术交底。

1) conduct technical disclosure according to the approved cable bridge construction organization design (construction plan).

2) 按电缆桥架施工图测量放线、坐标和标高、走向，经复核符合设计要求。

2) according to the cable bridge construction drawing, measure the laying out, coordinate and elevation, trend, and check the design requirements.

3) 电缆桥架的实际需要量，根据工程情况进行统计，现场验收电缆桥架及其附件齐全，规格数量应符合设计要求。

3) the actual demand of the cable tray, according to the engineering statistics, on-site acceptance, cable bridge and its accessories are complete, specifications and quantity should meet the design requirements.

4) 电缆桥架的安装宜在管道及空调工程基本施工完毕后进行。

4) cable bridge installation should be carried out after pipeline and air conditioning works are basically completed.

5) 土建工程应全部结束且预留孔洞、预埋件符合设计要求，预埋件安装牢固、强度合格。

5) civil engineering should be all over and reserved holes and embedded parts comply with the design requirements, installation of embedded parts firm, qualified strength.

二、电缆桥架拼装

Two. Cable bridge assembly

1) 托臂安装完工后，按电缆桥架施工图纸要求进行桥架拼装。拼装时须注意各层桥架型号，不得装错。

1) the installation after the completion of the bridge erection by cable bridge construction drawings. When assembling, we must pay attention to all kinds of bridge types.

2) 用于组合桥架延续连接及附件连接的紧固螺栓均应注意螺栓安装方向，螺栓头应在桥架内侧( 安装电缆部位) ，螺母在外侧，螺栓长度

2) the fastening bolts used in the continuous connection and attachment of the composite bridge should be paid attention to the direction of the bolt installation. The bolt head should be on the inside of the bridge (installation of the cable part), the nut on the outside, and the length of the bolt.

应适中。

It should be moderate.

3) 电缆桥架桥架在转弯或进行交叉、丁字连接时，应根据实际情况采用桥架标准弯头，注意宜先安装标准弯头，尤其是三通及四通标准弯头，而后从

3) the standard bend of the bridge frame should be adopted according to the actual situation when the cable bridge frame is turning or crossing and connecting, and the standard elbow should be installed first, especially the standard elbow of three and four, and then from the standard elbow.

弯头处开始，安装引向各方位的直线桥架，以免衔接不良。

At the elbow, install the straight bridge leading to all directions, so as to avoid bad connection.
